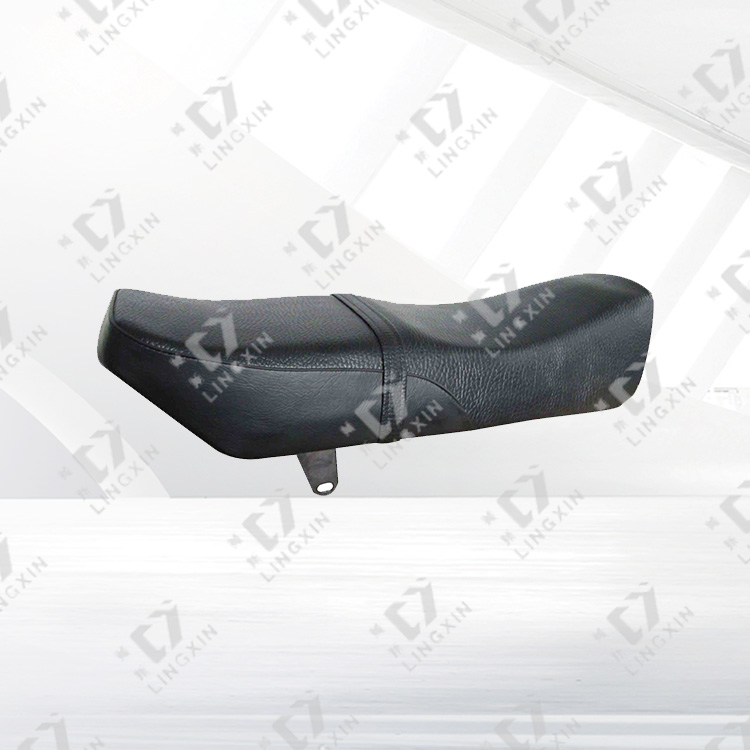

Motorcycle cushion production can choose motorcycle cushion two components of low pressure foam machine, motorcycle cushion two components of high pressure foam machine and motorcycle cushion disc line. The picture of the machine is as follows:

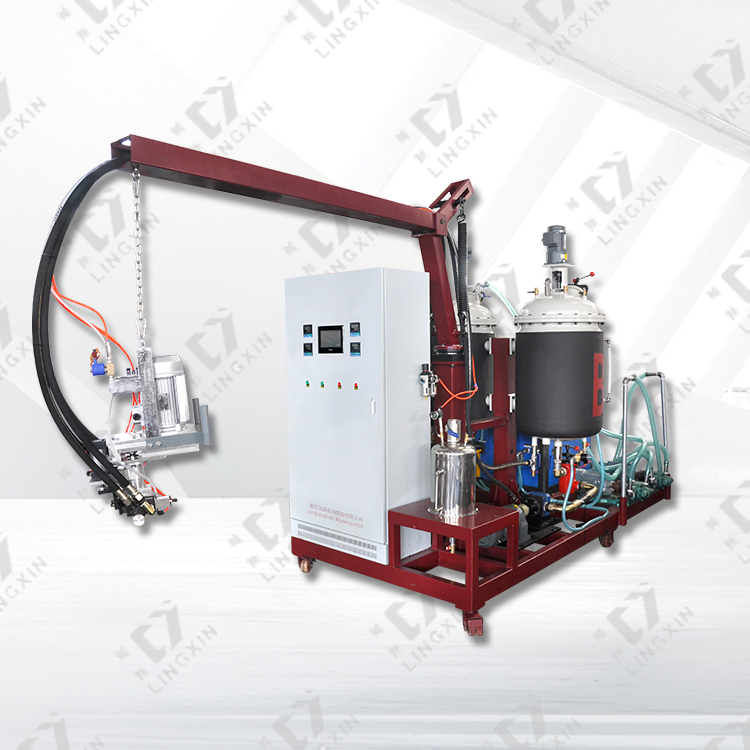

Motorcycle cushion two-component low-pressure foaming machine is a new product independently developed by lingxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.
Equipment technical parameters:
Item/model | total spit out quantity （g/s） | total power（kw） | Head stirring speed（r/min） | mix proportion | Overall dimensions (length X width X height) | weight（kg） | |
soft bubble | RR2-280 | 50-280g | 11 | 5200 | 100：50-150 | 2200*1400*2300 | 1000 |
RR2-450 | 80-450g | 11 | 5200 | 100：50-150 | 2200*1400*2300 | 1000 | |
RR2-700 | 125-700g | 11 | 5200 | 100：50-150 | 2200*1400*2300 | 1000 | |

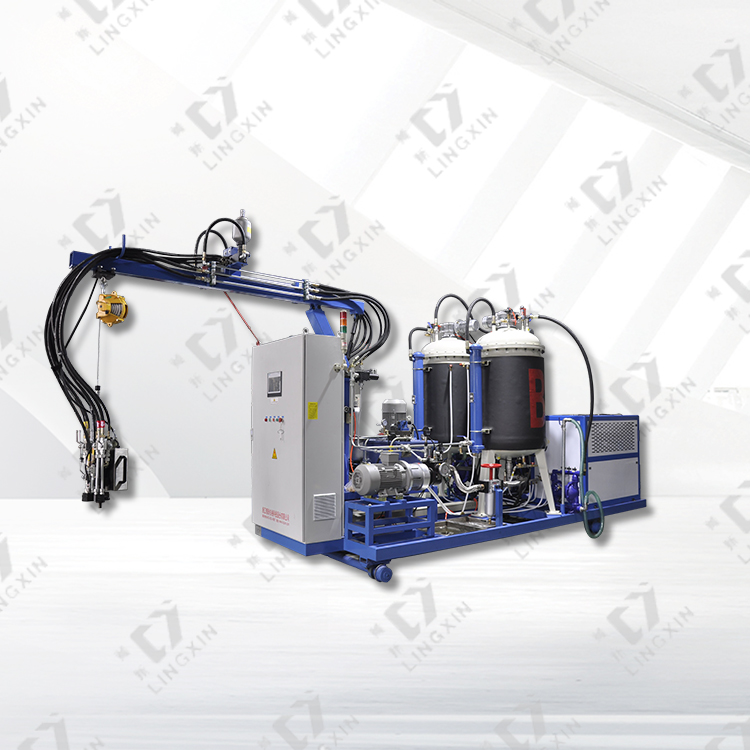

Motorcycle seat two components of high pressure foaming machine is to polyols and isocyanates two components of the liquid raw materials stored in two material storage tank respectively, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components was injected into the small mixing chamber with a high speed, high speed collision and mixing effect, make the material liquid evenly, mixing effect is good, no clean, stable performance, easy operation, achieve the goal of high production efficiency and environmental protection.
Equipment technical parameters:
Item/model | H2-L30 | H2-L80 |
Spit out quantity（g/s） | 110-520g/s | 270-1300g/s |
A tank capacity（L） | 250/500 | 250/500 |
B tank capacity（L） | 250/500 | 250/500 |
injection pressure（mpa） | 5-15 | 5-15 |
inject time（S） | 0.5-99.99 | 0.5-99.99 |
total power（kw） | 30 | 45 |
weight（kg） | 1800 | 1800 |

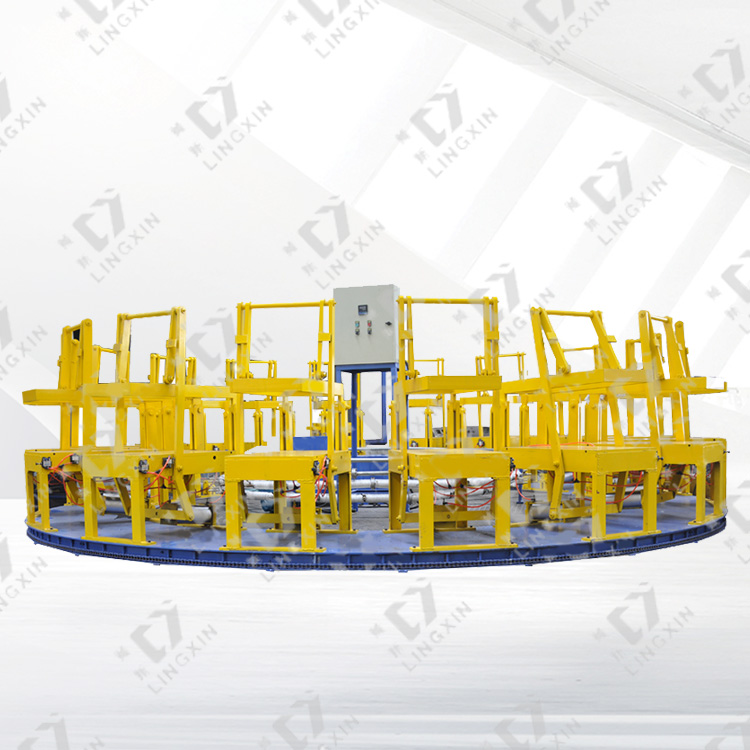

Motorcycle cushion disc line is used for continuous foam production of various motorcycle cushion. The equipment operates at a constant speed, and the running speed can be adjusted to the production beat. The disk is equipped with a power supply and air source conveying system. It forms a complete foaming production line with mould frame and mould temperature machine.
Equipment features:
Continuous cycle operation, simple operation, smooth transmission, high production efficiency.
Equipment technical parameters:
Disc diameter (m) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
