Selection of polyurethane equipment

Automobile engine cover plate production can choose automobile engine cover plate two-component low-pressure foaming machine, automobile engine cover plate two-component high-pressure foaming machine and automobile engine cover plate disk line, the machine picture is as follows:

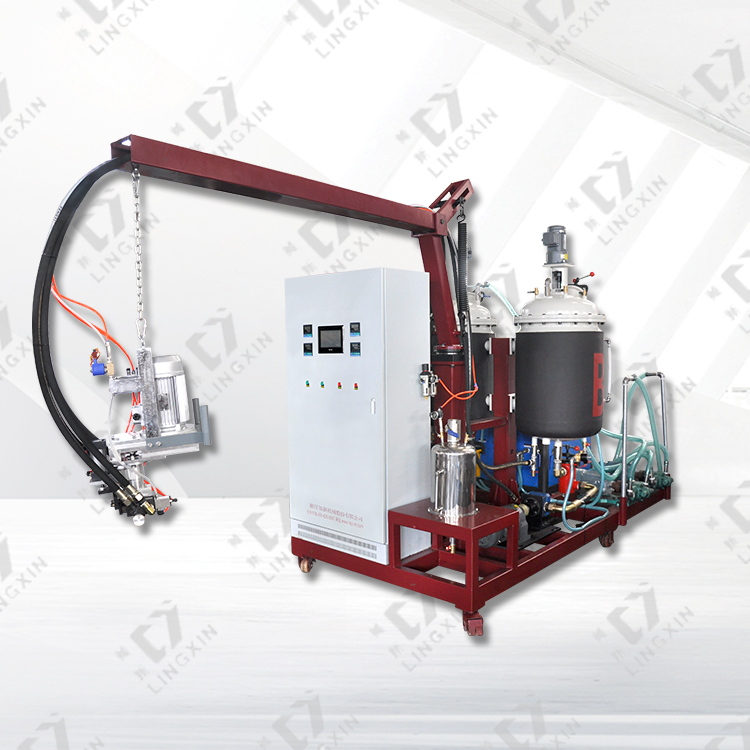

Car engine cover two components of low pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotary precision gear metering pump to the mixed system, the pressure under the action of mixing head open, two components were injected into the small in the mixing chamber, a mixing blade high speed stirring and mixing effect, make the material liquid evenly, to form the required product.

Application: this model is suitable for the production of automobile engine cover.

Equipment technical parameters:


unit type

LXPU-RR2-180

LXPU-RR2-280

LXPU-RR2-450

Flow rate (g/s)

30-180

50-280

80-450

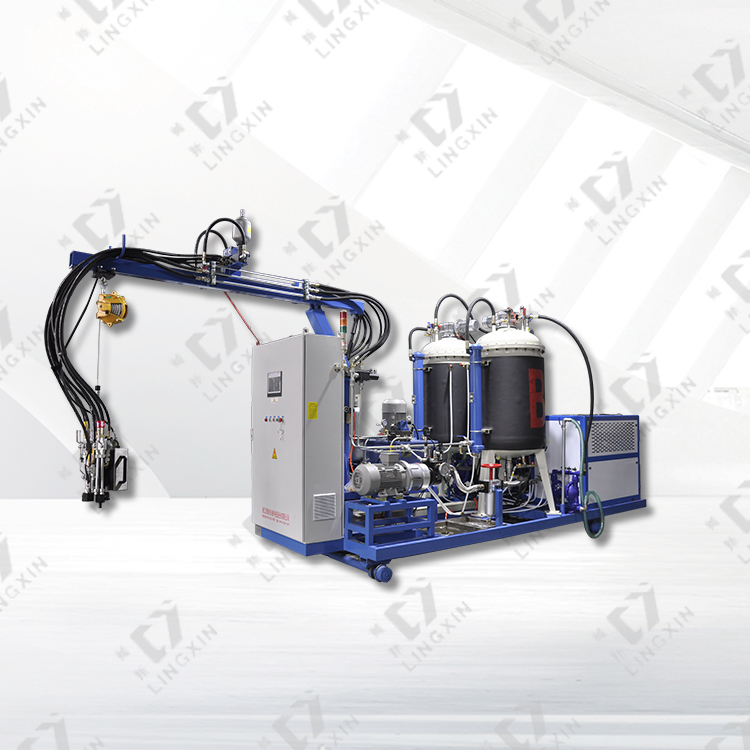

Car engine cover two components high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials respectively stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components at high pressure and velocity were injected into the small mixing chamber, the high speed collision and mixing effect, make the material liquid evenly, to form the required product.

Application: this model is suitable for the production of automobile engine cover.

Equipment technical parameters:


unit type

LXPU-H2-L25

LXPU-H2-L50

Flow rate (g/s)

80-350

160-800

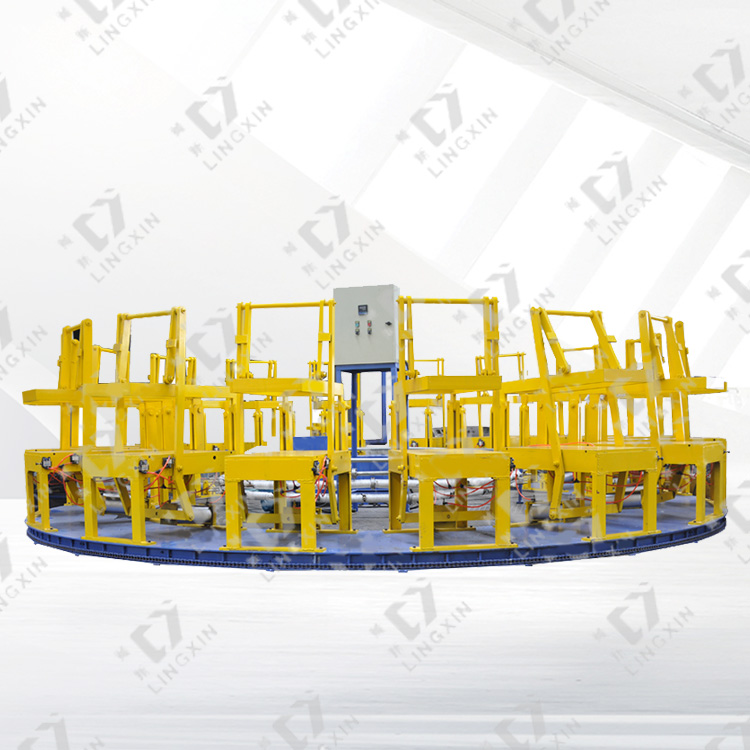

The automobile engine cover plate disc line is used for the continuous foaming production of various automobile engine cover plates. The equipment operates at a constant speed, and the running speed can be adjusted to the production beat. The disk is equipped with a power supply and air source conveying system. It forms a complete foaming production line with mould frame and mould temperature machine.

Equipment application: this production line is suitable for the production of automobile engine cover plate and other products.

Equipment features:

Continuous cycle operation, simple operation, smooth transmission, high production efficiency.

Technical parameters of disk line:


Disc diameter (m)

4

5

6

7

8

9

10

11

12

13

14

15
