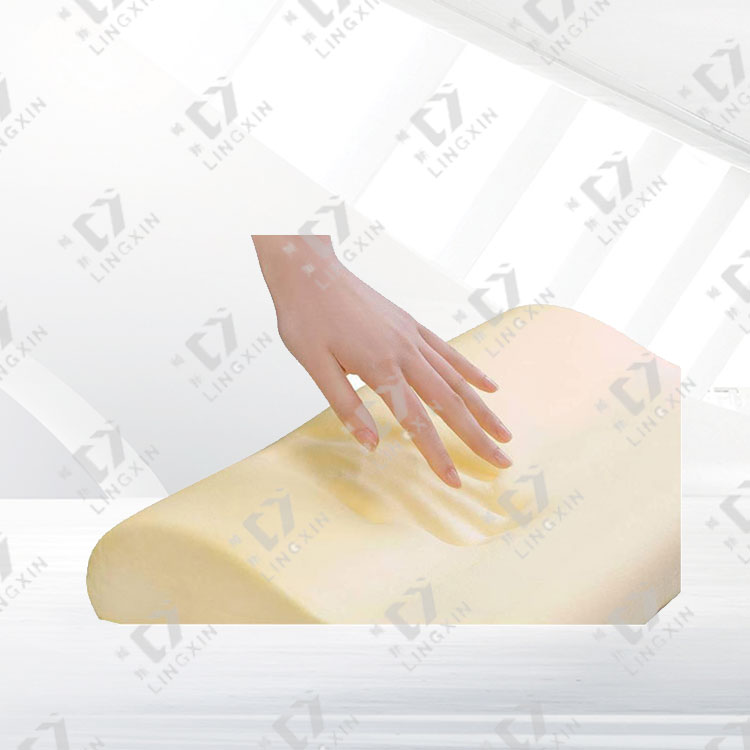

High, slow rebound pillows

‍‍

The production of high and slow rebound pillow can choose high and slow rebound pillow two-component low-pressure foam machine, high and slow rebound pillow two-component high-pressure foam machine, high and slow rebound pillow ring line or high and slow rebound pillow disk line. The picture of the machine is as follows:

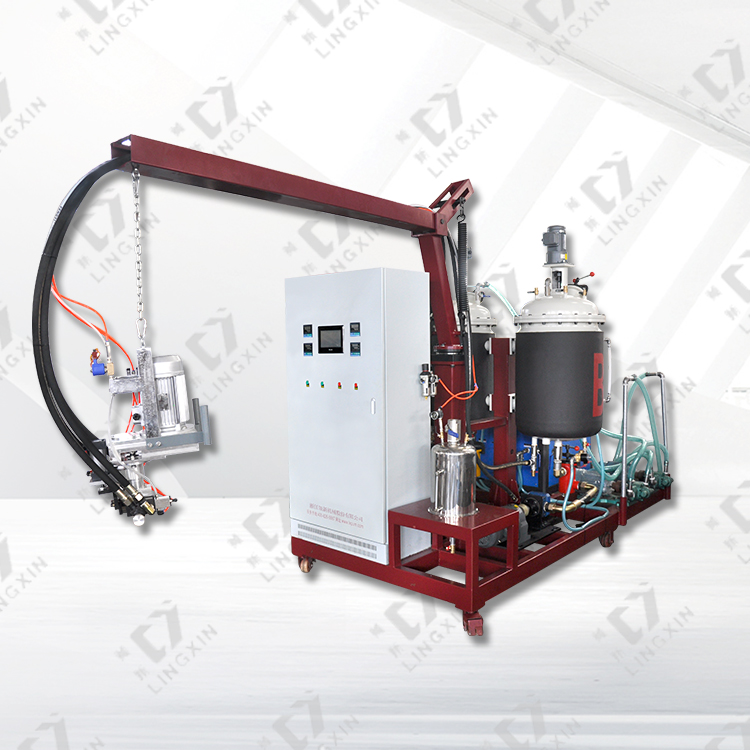

High and low pressure foaming machine memory foam pillow two components is the liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotary precision gear metering pump to the mixed system, the pressure under the action of mixing head open, two components were injected into the small in the mixing chamber, a mixing blade high speed stirring and mixing effect, make the material liquid of even, to form the required product. This two-component low-pressure foaming machine is a new product independently developed by linxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.

Application: this machine is specially used to produce polyurethane pillows with high and slow rebound.

Equipment technical parameters:

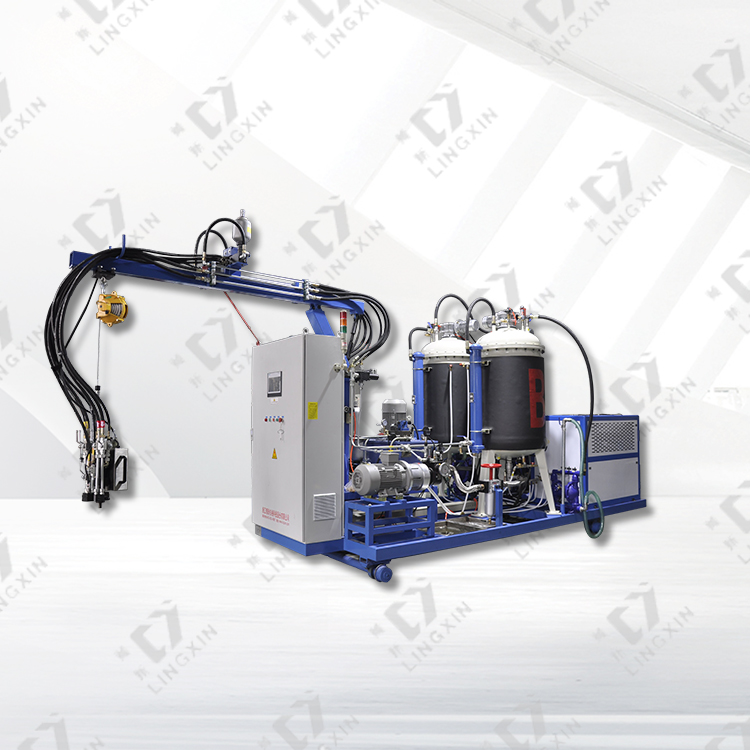

High, memory foam pillow two components of high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components at high pressure and velocity were injected into the small mixing chamber, the high speed collision and mixing effect, make the material liquid evenly, to form the required product.

Application: this machine is suitable for the production of polyurethane pillows with high resilience and slow resilience.

Equipment technical parameters:

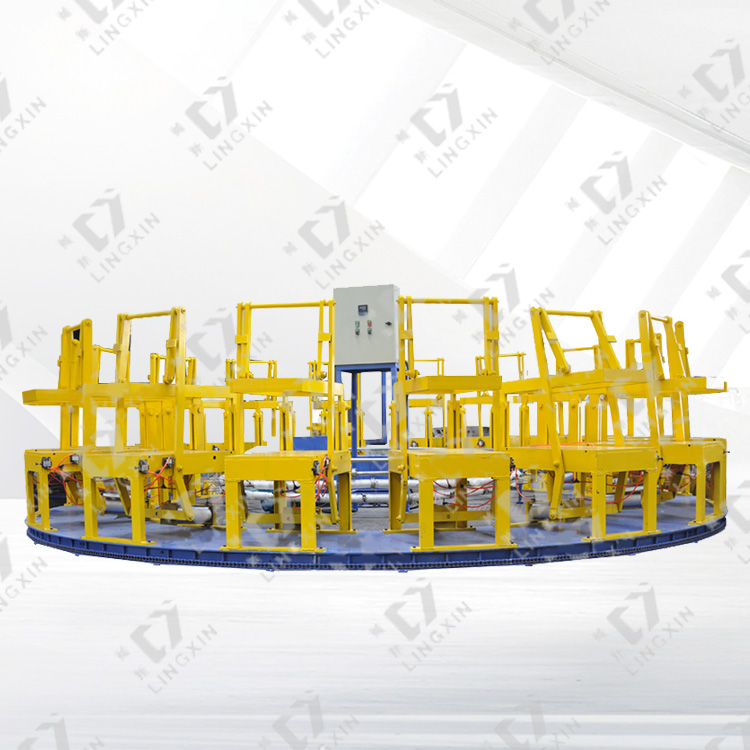

The ring production line of high and slow rebound pillow is an indispensable and necessary equipment for mass production of polyurethane products. This machine, combined with polyurethane foaming machine, continuously fills the mould on the annular line travelling platform, so as to realize flow operation and achieve the purpose of efficient production.

Application: this machine is suitable for high rebound, slow rebound pillows and other products.

Equipment features:

1) the equipment is simple and easy to use.

2) labor saving.

3) high yield.

4) the mold is heated by oven and heated evenly.

Equipment technical parameters:

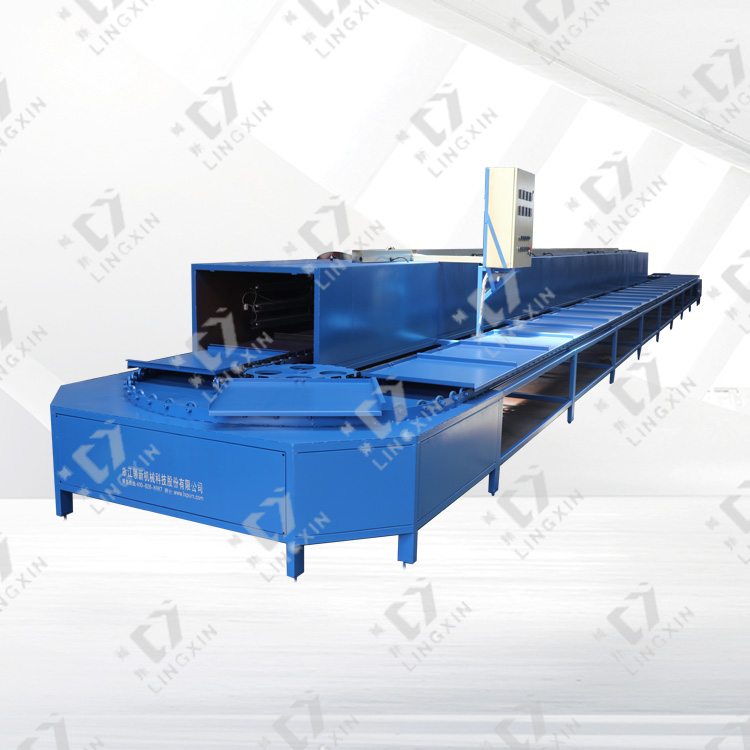

High and slow rebound pillow disc line is used for foaming production of various polyurethane products. The equipment operates at a constant speed, and the running speed can be adjusted to the production beat. The disk is equipped with a power supply and air source conveying system. It forms a complete foaming production line with mold temperature machine.

Application: this production line is suitable for the production of polyurethane pillows with high resilience and slow resilience.

Equipment features:

1) the equipment is simple and easy to use.

2) labor saving.

3) high yield.

4) the mold is heated by water in the mold temperature machine and heated evenly.

Technical parameters of equipment;

‍‍
