For information about two-component polyurethane low-pressure foaming machine, please click here
For information about two-component high pressure polyurethane foaming machine, please click here

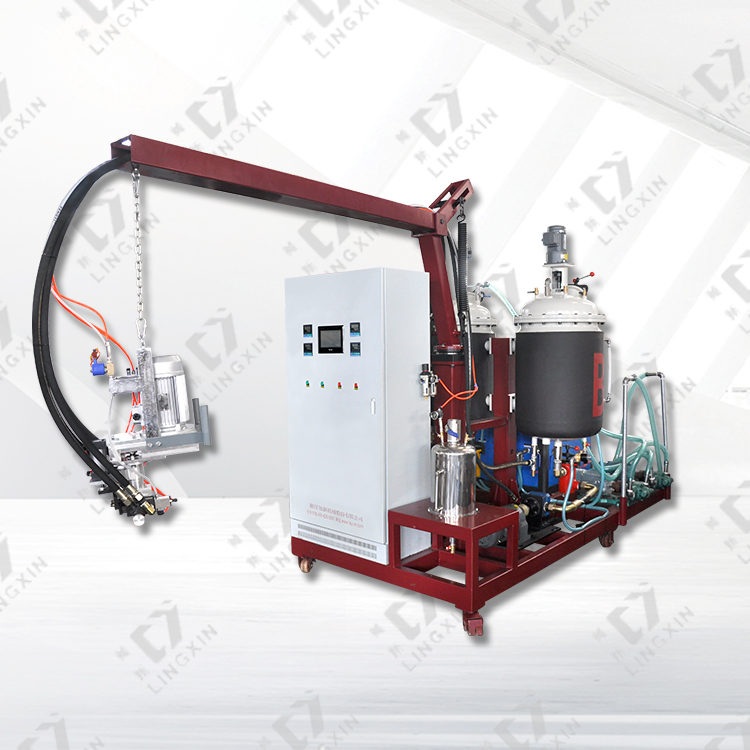

Sandbag production can choose sandbag two-component low-pressure foaming machine, sandbag two-component high-pressure foaming machine, the machine picture is as follows:
Sandbag two-component low-pressure foaming machine is a new product independently developed by lingxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.
Application: this model is suitable for producing sandbags and other products.
Equipment technical parameters:
Item/model | total spit out quantity (g/s) | total power(kw) | Head stirring speed(r/min) | mix proportion | Overall dimensions (length X width X height) | weight(kg) | |
soft bubble | RR2-700 | 125-700g | 11 | 5200 | 100:50-150 | 2200*1400*2300 | 1000 |
Sandbags 2 components high pressure foaming machine is the liquid polyols and isocyanates two components of the raw materials respectively stored in two material storage tank, by two rotary axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components was injected into the small mixing chamber with a high speed, high speed collision and mixing effect, make the material liquid evenly, mixing effect is good, no clean, stable performance, easy operation, achieve the goal of high production efficiency and environmental protection.
Application: this model is suitable for producing sandbags and other products.
Equipment technical parameters:
Item/model | H2-L30 | H2-L80 |
Spit out quantity(g/s) | 110-520g/s | 270-1300g/s |
A tank capacity(L) | 250/500 | 250/500 |
B tank capacity(L) | 250/500 | 250/500 |
injection pressure(mpa) | 5-15 | 5-15 |
inject time(S) | 0.5-99.99 | 0.5-99.99 |
total power(kw) | 26 | 30 |
height(kg) | 1800 | 1800 |
