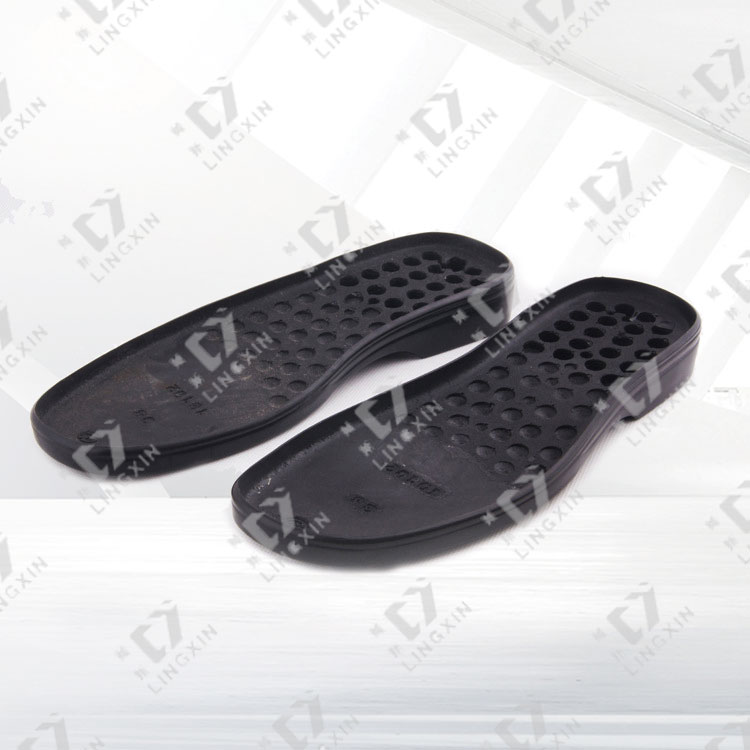

Polyester sole

‍‍

Polyester sole production can be made by two-component low-pressure polyester foam machine or polyester sole automatic production line. The machine pictures are as follows:

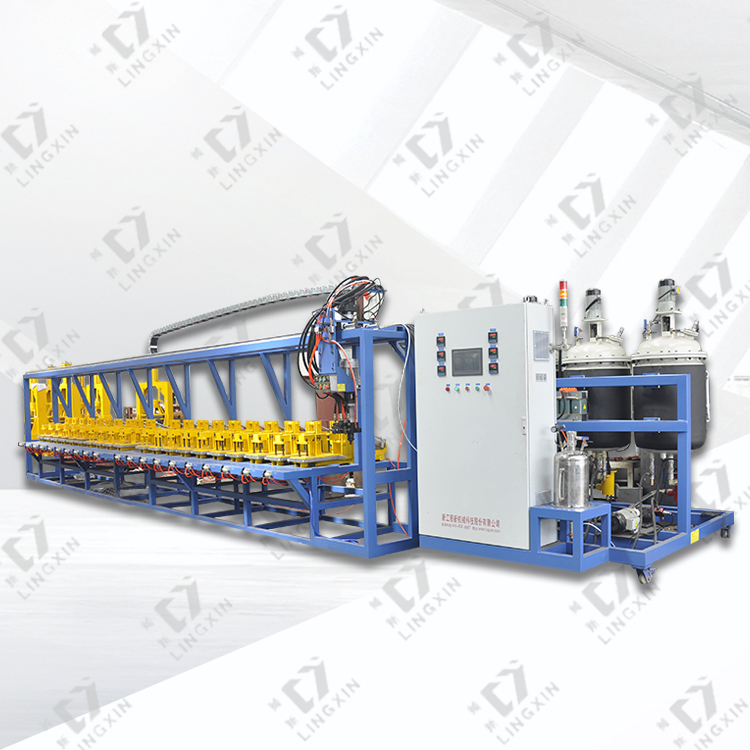

Polyester sole 2 components low pressure foaming machine is the liquid polyols and isocyanates two components of the raw material stored in two material storage tank respectively, through the two rotary precision gear metering pump to the mixed system, the pressure under the action of mixing head open, two components were injected into the small in the mixing chamber, a mixing blade high speed stirring and mixing effect, make the material liquid of even, to form the required product.

Application: this model is suitable for producing polyester sole and other products.

Equipment technical parameters:

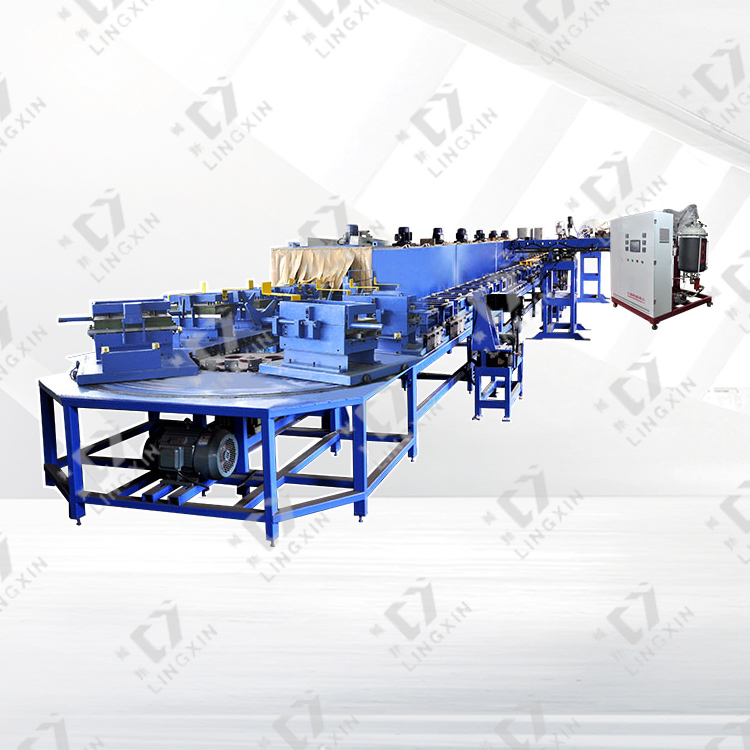

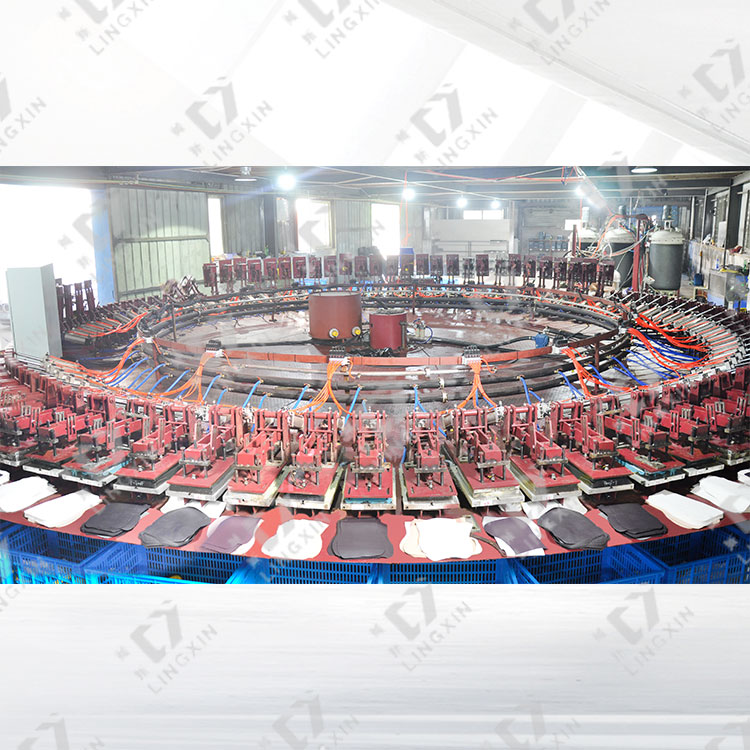

Polyester sole automatic production line can automatically feed, automatically open and close mold, automatic cleaning. It can improve production efficiency, reduce defective products, save raw materials and reduce labor force, and improve the qualified rate of products. The linear assembly line is equipped with 20-30 molds, and the disc line and ring line are equipped with more than 60 molds.

Application: this production line is suitable for producing polyester sole and other products.

Equipment features:

1) high degree of intelligence. Controlled by PLC microcomputer, can set a variety of production plans and save, switch at any time, can set up to 999 stations.

2) labor saving.

3) high yield.

4) automatic mold opening and closing. Set up computer program to control cylinder opening and closing.

5) polyurethane foaming machine can work for a long time. One key can automatically clean the machine head to prevent it from blocking.

6) the mixing head mixing system rotates at high speed to fully mix and stir the raw materials and improve the foaming quality.

7) low power consumption. The hot water circulation system is used to heat the aluminum plate at the bottom of the mold rack, thus heating the mold and maintaining the required foaming temperature.

Equipment technical parameters:

‍‍
